Tempered glass processing is one of the most important safety glass processes for architectural, decorative and interior glass projects. Through controlled heating and rapid cooling, ordinary glass is transformed into tempered safety glass with higher strength and safer breakage behavior.
Barrett Limited supplies custom tempered glass for building, interior and furniture applications. Tempered glass processing is widely used for glass balustrade and railing, glass pool fencing, shower glass enclosures, office glass partitions, doors, windows, table tops and other safety glass projects.
What Is Tempered Glass Processing?
Tempered glass processing, also called glass tempering or toughened glass processing, is a heat treatment process. The glass is heated to a high temperature and then rapidly cooled by air quenching. This process creates compressive stress on the glass surface and tensile stress inside the glass, improving strength and safety performance.
Compared with ordinary annealed glass, tempered glass has higher impact resistance and thermal shock resistance. When broken, it usually breaks into small granular pieces rather than large sharp fragments, which makes it suitable for many safety glass applications.
Tempered Glass Processing Workflow
A stable tempered glass processing workflow is important because the final glass cannot be cut, drilled or reshaped after tempering. All processing details must be completed before the glass enters the tempering furnace.
- Drawing review: Confirm glass size, thickness, holes, notches, cut-outs, edge finish and project application.
- Glass cutting: Cut flat glass sheets into the required size or shape according to project drawings.
- Edge processing: Grind, polish or finish the glass edges before tempering.
- Drilling and notching: Complete all holes, slots, notches and hardware cut-outs before heat treatment.
- Washing and drying: Clean the glass surface to remove dust, oil and processing residues.

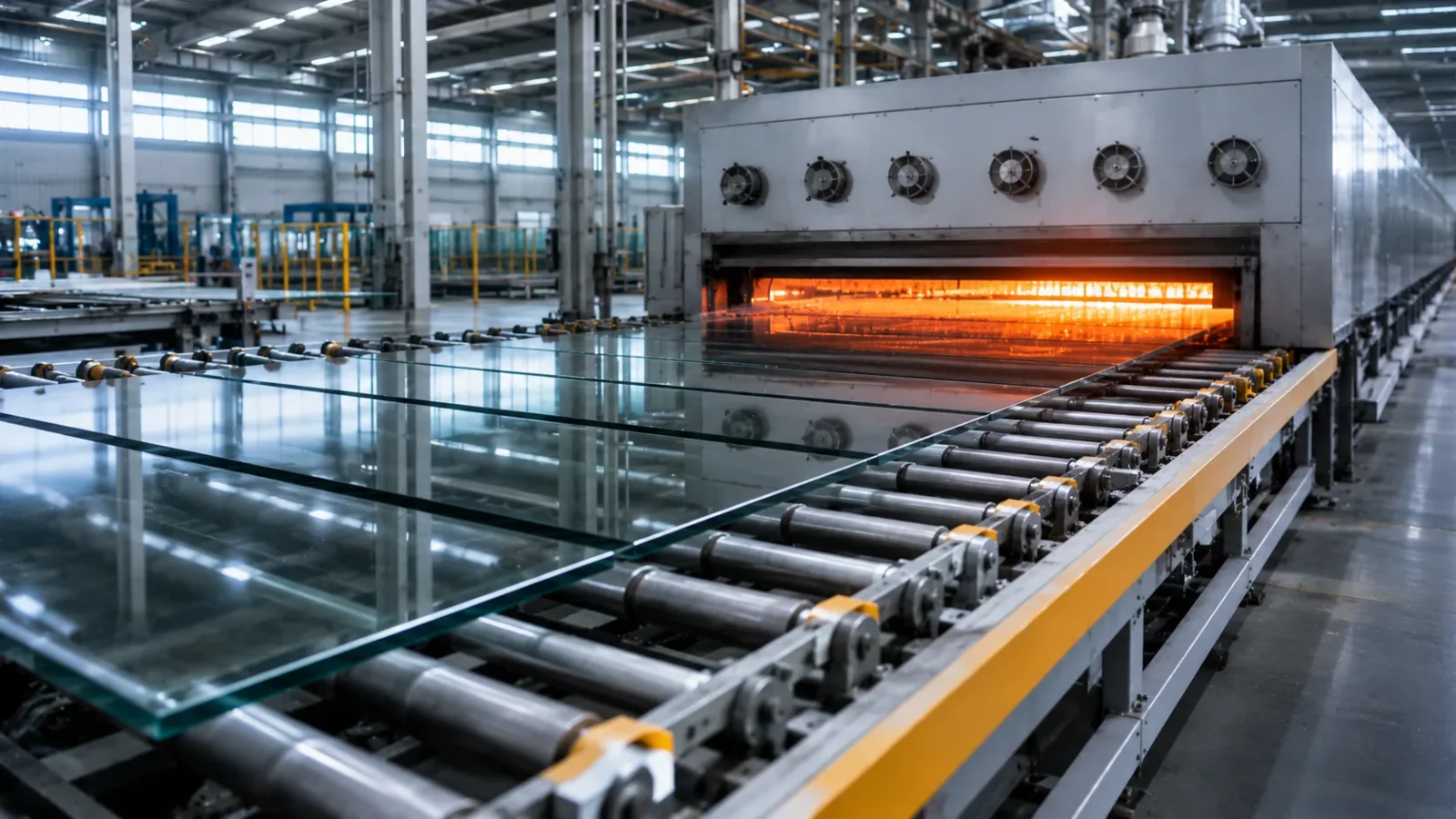

- Heating: Heat the glass evenly in the tempering furnace.
- Quenching: Rapidly cool the glass surface with controlled air flow to create the tempered stress structure.
- Inspection: Check size, surface quality, edge condition, flatness, fragmentation performance and project requirements.
- Packing: Pack the tempered glass with protective separation, labels and export-safe wooden crates.
Why Cutting and Drilling Must Be Finished Before Tempering
Tempered glass cannot be cut, drilled, notched or edge processed after tempering. Any attempt to modify tempered glass after heat treatment may cause breakage because the internal stress structure has already been formed.
Before production, all drawings must be checked carefully. This includes glass size, hole position, notch shape, corner radius, edge finish, hardware details and installation direction. This is especially important for shower doors, railing panels, pool fencing glass, partition glass and door glass.
Suitable Glass Products
Tempered glass processing can be applied to different glass types depending on the final application and design requirements.
- Tempered Glass for general architectural and safety glass applications
- Low Iron Tempered Glass for premium projects requiring clearer appearance
- Frosted Tempered Glass for privacy and decorative safety glass
- Acid Etched Tempered Glass for matte privacy glass applications
- Patterned Tempered Glass for textured decorative safety glass
- Heat Soaked Glass for projects requiring additional risk reduction for tempered glass breakage
Common Applications of Tempered Glass
Tempered glass is widely used in applications where strength, safety and durability are required. It is common in both exterior architectural projects and interior glass systems.
- Glass Balustrade and Railing for balconies, stairs, terraces and decks
- Glass Pool Fencing for outdoor pool safety barriers
- Shower Glass Enclosures for bathroom doors and shower panels
- Office Glass Partitions for commercial interiors and meeting rooms
- Decorative Glass Door Panels for interior doors and sliding doors
- Custom Table Top Glass for dining tables, office desks and furniture projects
Key Processing Requirements
Tempered glass processing requires accurate pre-processing and stable quality control. Since the glass cannot be modified after tempering, early confirmation is critical.
| Processing Item | Cutting, edging, polishing, drilling, notching, washing, heating, quenching, inspection and packing |
|---|---|
| Suitable Glass | Clear float glass, low iron glass, frosted glass, acid etched glass, patterned glass and other temperable glass types |
| Important Details | Glass size, thickness, edge finish, holes, notches, cut-outs, corner radius, application and tolerance |
| Common Applications | Railing glass, shower glass, pool fencing glass, door glass, partition glass, window glass and furniture glass |
| Project Information Needed | Drawings, glass type, size, thickness, hole details, edge finish, quantity, application and packing requirements |
Tempered Glass Strength and Safety Performance
Tempered glass is selected because it provides higher strength than ordinary annealed glass and safer breakage behavior. It can better resist impact, bending stress and temperature changes under suitable design and installation conditions.
However, tempered glass is not unbreakable. Correct glass thickness, panel size, edge quality, hole position, installation method and hardware support are important for long-term performance. For applications where post-breakage retention is required, laminated glass or tempered laminated glass may be more suitable.
Low Iron Tempered Glass for Premium Projects
Low iron glass can be tempered for projects requiring a clearer and brighter appearance. Compared with standard clear glass, low iron glass reduces the greenish tint that may appear on thicker glass edges.
Low iron tempered glass is commonly used for premium railings, pool fencing, shower glass, display glass, hotel interiors, luxury residential projects and high-end commercial spaces.
Tempered Glass with Holes and Notches
Many tempered glass panels require holes, notches or cut-outs for hardware installation. These details are common in shower doors, glass railings, pool fencing, office partitions and glass doors.
All holes and notches must be processed before tempering. Hole diameter, edge distance, hardware model and installation direction should be confirmed carefully. Poorly planned holes or notches may affect installation or increase breakage risk.
Heat Soak Test for Tempered Glass
For some safety-sensitive applications, heat soak testing may be requested after tempering. Heat soak testing is used to reduce the risk of spontaneous breakage caused by nickel sulfide inclusions in tempered glass.
Heat soaked glass is often considered for high-rise facades, balustrades, overhead glass, public buildings and other applications where safety risk reduction is important.
Tempered Glass Quality Control
Quality control for tempered glass focuses on size accuracy, edge quality, hole position, surface condition, flatness, stress quality, fragmentation behavior and visual appearance. For project glass, drawing consistency and panel labeling are also important.
Barrett Limited can support project-based labels, packing sequence and export-safe wooden crate packing according to installation areas, room numbers, product types or customer requirements.
Related Glass Processing Services
Tempered glass processing is often combined with other glass processing steps. The following processing pages may also be useful for project planning:
- Glass Cutting and Edge Processing
- Glass Drilling and CNC Processing
- Heat Soak Test for Tempered Glass
- Laminated Glass Processing
- Glass Quality Control
Related Product Options
The following glass products are closely related to tempered glass processing:
Frequently Asked Questions
What is tempered glass processing?
Tempered glass processing is a heat treatment process that heats glass and rapidly cools it to increase strength and create safer breakage behavior.
Can tempered glass be cut after tempering?
No. Tempered glass cannot be cut, drilled, notched or edge processed after tempering. All processing details must be completed before heat treatment.
What is the difference between tempered glass and ordinary glass?
Tempered glass has higher strength and safer breakage behavior than ordinary annealed glass. It usually breaks into small granular pieces instead of large sharp fragments.
When is heat soak testing needed?
Heat soak testing may be requested for safety-sensitive tempered glass applications such as facades, balustrades, overhead glass and public building projects.
What information is needed for a tempered glass quotation?
Please provide glass size, thickness, quantity, edge finish, hole details, notches, drawings, application, safety requirement and packing details.
Request Custom Tempered Glass Processing
If your project requires custom tempered glass processing, send us your drawings, glass size, thickness, holes, notches, edge finish, quantity, application and packing requirements. Barrett Limited can help review the specifications and suggest suitable tempered glass options for architectural, decorative and safety glass projects.
